Pinwheel Galaxy/M101 - a grand, face-on spiral spinning in Ursa Major

 ↪︎ toggle
Messier 101, also known as the Pinwheel Galaxy, is a stunning face-on spiral galaxy in the constellation Ursa Major, near the handle of the Big Dipper. It’s one of the finest examples of a grand-design spiral, and for stargazers with the right conditions, it’s a subtle but deeply rewarding target.

At magnitude ~7.9, M101 is relatively bright on paper, but its large size (about 28 arcminutes) spreads that light out — making it appear faint under light-polluted skies. That makes dark skies (Bortle 1–3) especially important. In binoculars, it may appear as a soft, round glow. Through a medium to large telescope, you’ll begin to pick out its central core and, with patience and averted vision, hints of the delicate spiral arms that give it its nickname.

One of the best things about M101 is that it’s a true galactic giant — it spans over 170,000 light-years, making it larger than the Milky Way. It’s also rich in star-forming regions, which show up in long-exposure photos as bright knots in its arms. Even visually, larger telescopes (10”+) may hint at these brighter patches under excellent skies.

M101 is best observed from late winter through early summer, when Ursa Major is high in the sky. It’s a wonderful contrast to more compact, high-surface-brightness galaxies — instead offering a challenge that rewards dark adaptation, wide-field views, and quiet patience. For visual observers and astrophotographers alike, it’s a graceful, swirling gem of the northern sky.


Pinwheel Galaxy/M101
Rating: 🔵 Stagazer FavoriteLevel: 🟡 ChallengingHow: When: Mar - Jul
🌟 A Classic Face-On Spiral Galaxy
M101 is one of the best examples of a face-on spiral, with grand, sweeping arms that look like a cosmic pinwheel—especially striking in photographs and large telescopes.
🌟 Enormous and Beautifully Structured
With a diameter of 170,000 light-years, M101 is even larger than the Milky Way. Its wide, asymmetrical spiral arms are dotted with glowing star-forming regions.
🌟 Loaded with HII Regions
The galaxy is rich in hydrogen emission nebulae, which show up as bright knots in long exposures. Some are so large they’d dwarf the Orion Nebula!
🌟 A Rewarding Challenge for Visual Observers
M101 is bright (mag ~7.9) but has low surface brightness, so it’s a great challenge under dark skies. In large telescopes, you can trace out spiral arms and spot subtle features.
🌟 Easy to Find in the Big Dipper’s Handle
M101 lies just off the end of the Big Dipper’s handle, near Alkaid (Eta Ursae Majoris)—making it a convenient spring target for northern observers.
🌟 A Glimpse into Cosmic Scale
At about 21 million light-years away, M101 gives you a vivid sense of scale, showing just how vast and intricate spiral galaxies can be in the universe.
Pinwheel Galaxy/M101
NamesM101, Pinwheel Galaxy, NGC 5457ConstellationUrsa MajorDistance23 million ly
RA, Dec14h 04m 07s, +54° 13′ 36″Angular Size24’ x 23’Magnitude+7.77

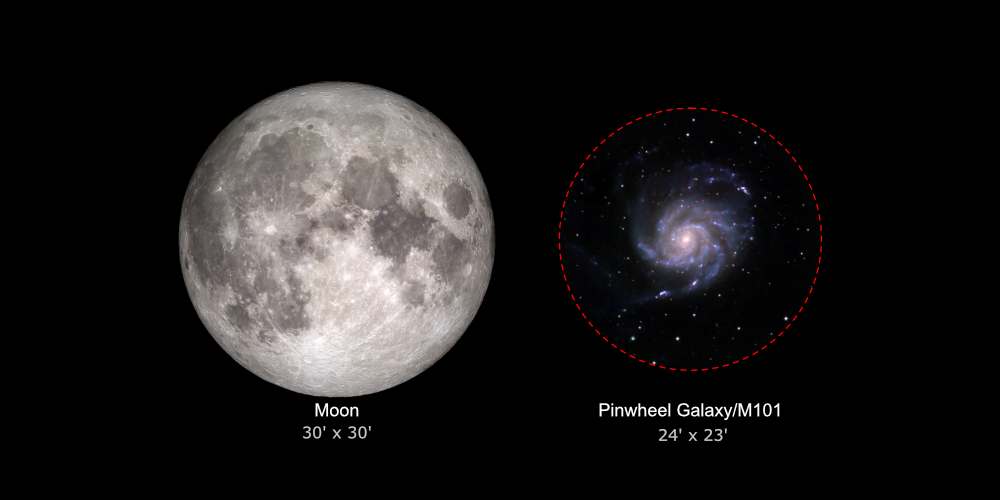

Angular
Size
vs
Moon
DSO TypeSpiral galaxy: a galaxy with a flat, rotating disk of stars, gas, and dust, featuring winding spiral arms and a central bulge.
Pinwheel Galaxy/M101

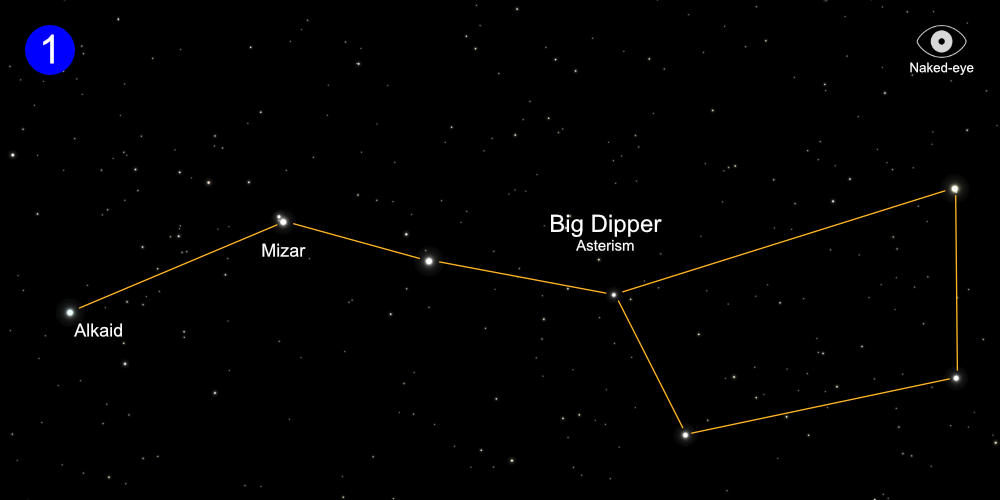

Find the Big Dipper in Ursa Major and find two stars at the end of the handle: Alkaid (+1.86) and Mizar (+2.22).

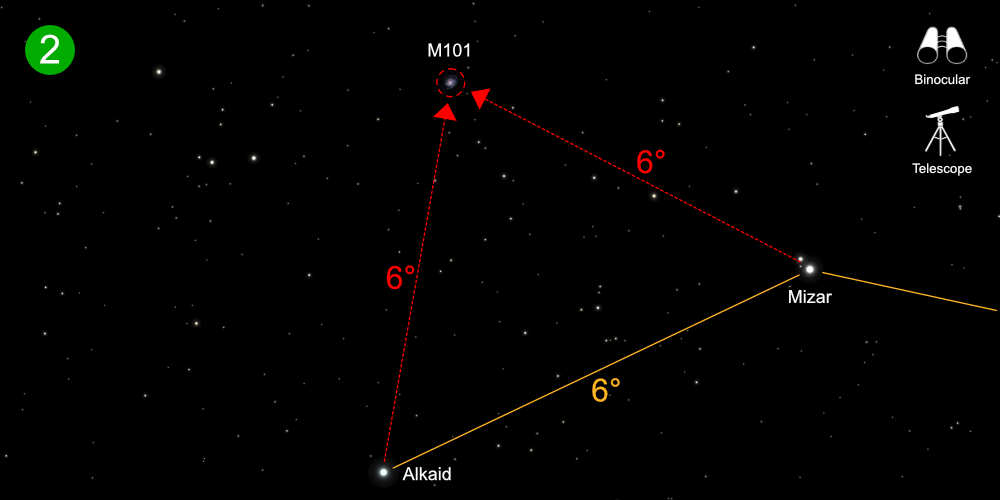

Imagine an equatorial triangle in which the three points are Alkaid, Mizar and M101. Using a binocular or telescope finder, try to point to M101. Using the binocular or low-powered telescope eyepiece, look for M101.

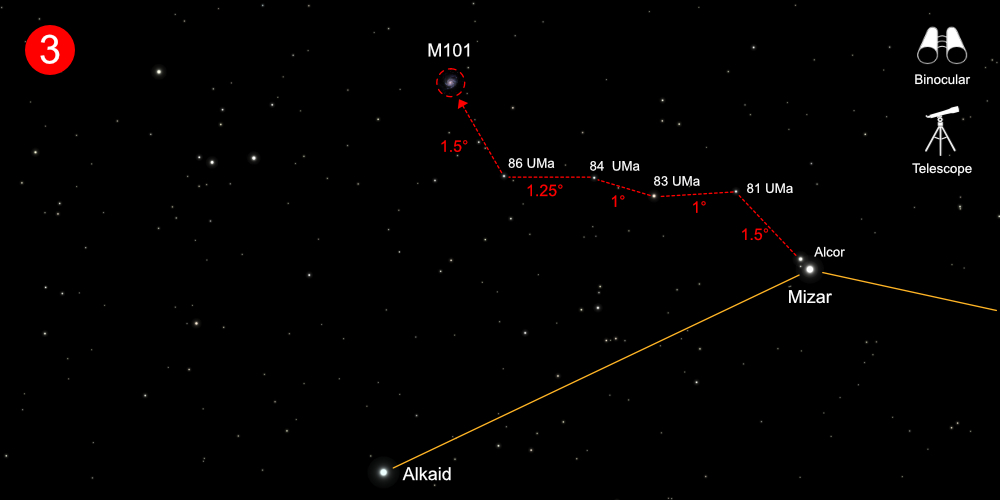

If you couldn't find it, here's an alternate method using a binocular, telescope optical finder or low-powered eyepiece: star hop from Mizar, to Alcor and then to a string of four (mag +5) stars -- 81 UMa, 83 UMa, 84 UMa and 86 UMa. Finally hop to M101. Using a binocular or low-powered telescope eyepiece, look for M101.
Pinwheel Galaxy/M101
Choose the darkest sky possible.
M101’s low surface brightness means that even slight light pollution or moonlight can wash out its delicate structure. A Bortle 4 or better sky is ideal for revealing its outer arms.
Use a medium or large telescope.
While M101 can be spotted in smaller scopes as a faint patch, a telescope with at least 6 to 8 inches of aperture is needed to begin detecting spiral structure and fainter features.
Use low power to find, medium power to explore.
Start with low magnification (around 50x) to locate the galaxy and see its full extent, then switch to a medium power (100x–150x) to bring out detail and contrast in the spiral structure.
Let your eyes fully adapt to the dark.
You’ll need full night vision to detect the galaxy’s faint outer arms. Give your eyes at least 20–30 minutes to adjust and avoid nearby lights or screens.
Use averted vision to enhance faint features.
Look slightly off to the side of the galaxy’s core. This technique activates the more sensitive parts of your retina and can reveal arms, knots, and halo detail.
Be patient and observe slowly.
M101 rewards extended observation. The longer you look, the more you’ll see, including subtle asymmetries and faint clumps marking star-forming regions.
Pinwheel Galaxy/M101
Naked Eye
Messier 101 is not visible to the naked eye.
❗️ Binoculars
A faint, round smudge under dark skies. Requires averted vision and excellent sky conditions.
⚠️ Small Telescope
In a small telescope, it may appear as a very faint, round, and diffuse glow with no structure, often challenging to spot even under dark skies.
Medium Telescope
With a medium telescope, the large, ghostly disk becomes more apparent, and attentive observers may begin to detect a slightly mottled texture or uneven brightness across its face.
Large Telescope
In a large telescope under very dark conditions, M101 reveals its full majesty: faint but traceable spiral arms begin to emerge from the bright, compact core, dotted with subtle knots and patches where star-forming regions lie—making it one of the few face-on spirals that shows real structure to visual observers, though it remains a delicate and challenging target.
Pinwheel Galaxy/M101
Messier 101, the Pinwheel Galaxy, is a large, face-on spiral galaxy in the constellation Ursa Major. Though its total magnitude is relatively bright, its light is spread out over a large area, giving it extremely low surface brightness. This makes M101 one of the most light pollution-sensitive galaxies in the Messier catalog, and its appearance varies dramatically depending on sky quality.
🟣 In Bortle 1–2 skies, M101 is an impressive and expansive sight. It appears as a softly glowing disk with a bright core and faint, sweeping spiral arms that can be teased out with patient, careful viewing. The arms show gentle curvature and uneven brightness, with star-forming knots and subtle structure scattered throughout. The surrounding sky is rich with stars, allowing M101 to float clearly in the field with a sense of depth and dimension. In these skies, the Pinwheel lives up to its name—ghostly but elegant.
🟢 In Bortle 3–4 skies, M101 is still visible, but begins to lose its intricacy. The central core remains fairly prominent, but the spiral arms fade into the background and require more effort to detect. Some brighter patches along the arms might still be seen with averted vision, but the overall structure becomes less obvious. The galaxy appears more like a dim halo around a bright center rather than a richly detailed spiral.
🟡 In Bortle 5–6 skies, M101 is greatly diminished. The bright core may still be visible as a faint glow, but the disk becomes difficult to distinguish, and the arms are virtually undetectable. The galaxy appears as a featureless smudge with no clear shape or texture. Its large size works against it in these conditions, as its light is diluted and lost in the skyglow. The surrounding field lacks context, further flattening the view.
🟠 In Bortle 7+ skies, M101 becomes almost invisible. Its diffuse light is completely overwhelmed by the brightness of the sky, and even the central core may be extremely faint or undetectable. Without a dark background or sufficient contrast, the galaxy effectively disappears from view and is easily missed, even by experienced observers.
