Trifid Nebula/M20 - a vivid trifecta of stars, dust, and gas in Sagittarius
Messier 20, better known as the Trifid Nebula, is one of the most intriguing and photogenic deep-sky objects in the summer sky. Found in the constellation Sagittarius, just a degree or so north of the brighter Lagoon Nebula (M8), M20 is a compact nebula that offers a unique blend of structure and contrast — and a satisfying challenge for visual observers.

What sets the Trifid apart is its rare combination of three types of nebulae:

● A glowing pink-red emission nebula (glowing red hydrogen gas),
● A soft blue reflection nebula (blue starlight scattered by dust), and
● Prominent lines of dark nebula (dust lanes) that block light and split the bright core into three lobes — giving it the name “Trifid,” meaning “threefold.”

Through the eyepiece, M20 is faint but rewarding. In small to medium scopes under dark skies, you can detect the faint circular glow, and with a bit of magnification and averted vision, you may begin to see the dark lanes forming the classic trifid pattern. It responds well to UHC filters, which help enhance the contrast between the emission glow and the surrounding sky.

While it doesn’t pop with vivid color visually like it does in photos, M20 offers a subtle and elegant beauty, and its proximity to M8 makes it a perfect part of a Sagittarius nebula-hopping session. It’s a favorite for astrophotographers too — the contrasting pink and blue regions make it a natural showstopper in wide-field images.

Whether you’re a visual observer or an imager, Messier 20 is a highlight of the summer Milky Way — compact, complex, and cosmically cool.


Trifid Nebula/M20
Rating: 🔵 Stagazer FavoriteLevel: 🟢 ModerateHow: When: mid-Jun - Sep
🌟 A Rare Triple Nebula
M20 uniquely combines three types of nebulae in one—emission, reflection, and dark nebula—earning it the name “Trifid,” meaning “divided into three lobes.”
🌟 Visually Striking in Photos and Scopes
Astrophotographers love M20 for its rich color palette—rosy reds from hydrogen gas and cool blues from reflected starlight—while observers with moderate telescopes can detect its distinctive dark dust lanes.
🌟 Great in Small to Large Telescopes
In small scopes, it appears as a softly glowing patch; in medium to large scopes, the dark rifts dividing the nebula become visible, along with hints of the embedded star cluster.
🌟 Located in a Rich Sky Region
M20 sits near Messier 8 (Lagoon Nebula) in Sagittarius, allowing you to view two spectacular nebulae in the same session—sometimes even in the same wide-field eyepiece.
🌟 A Stellar Nursery in Action
M20 is an active star-forming region, with young, hot stars illuminating surrounding gas and dust—offering a vivid example of how stars are born.
🌟 A Milky Way Gem
Located in the dense summer Milky Way, the Trifid is part of a stellar-rich neighborhood, perfect for extended deep-sky tours through one of the most rewarding parts of the sky.
Trifid Nebula/M20
NamesTrifid Nebula, Messier 20 (M20), NGC 6514ConstellationSagittariusDistance5,200 ly
RA, Dec18h 04m 08s, -23° 02′ 02"Angular Size29’ x 27'Magnitude+6.30

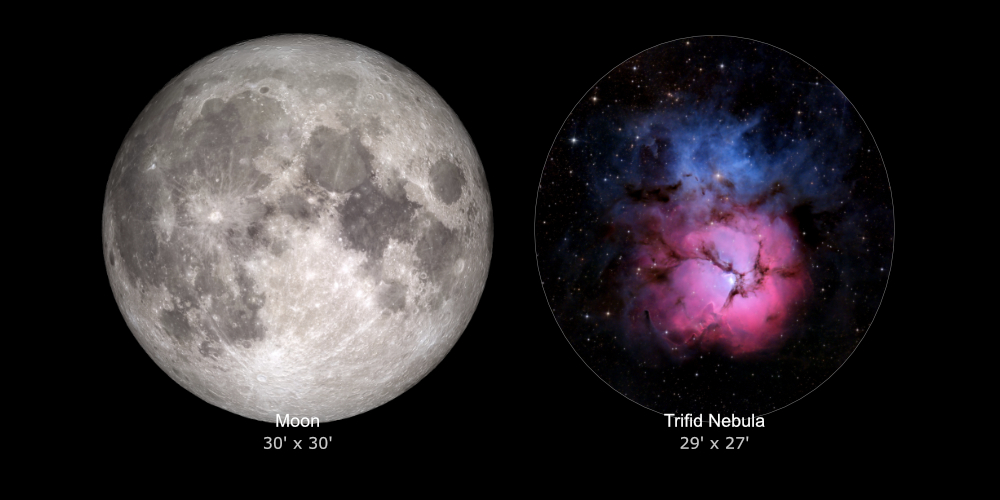

Angular
Size
vs
Moon
DSO TypeEmission nebula: a glowing cloud of ionized gas that shines with its own light, typically powered by nearby young, hot stars.

Reflection nebula: a cloud of dust that shines by reflecting the light of nearby stars, often appearing blue due to scattered starlight.

Dark nebula: a dense cloud of gas and dust that blocks the light from stars and objects behind it, appearing as a dark patch against the brighter background of space.
Trifid Nebula/M20

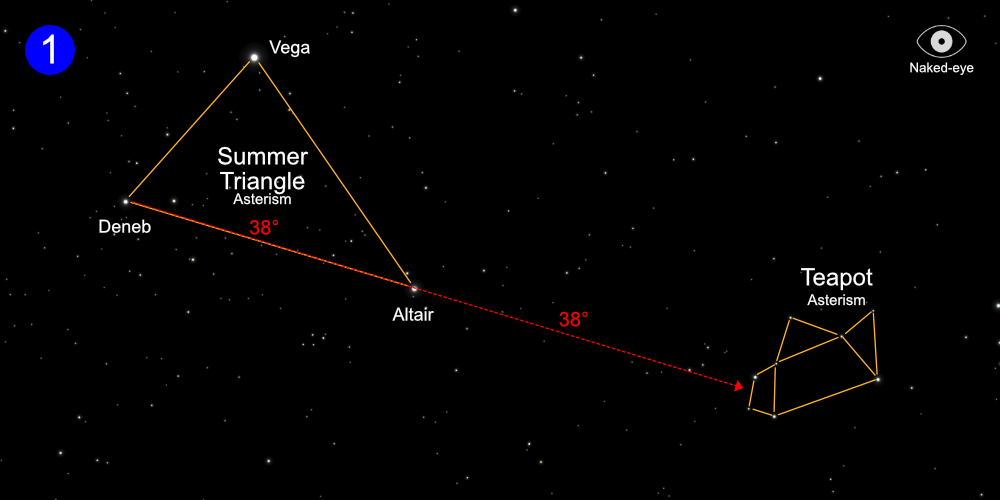

Find the Teapot asterism in Sagittarius low in the southern sky. If you need help, use the Summer Triangle and hop from Deneb to Altair (38°) and then hop again in the same direction and distance to the Teapot (38°).

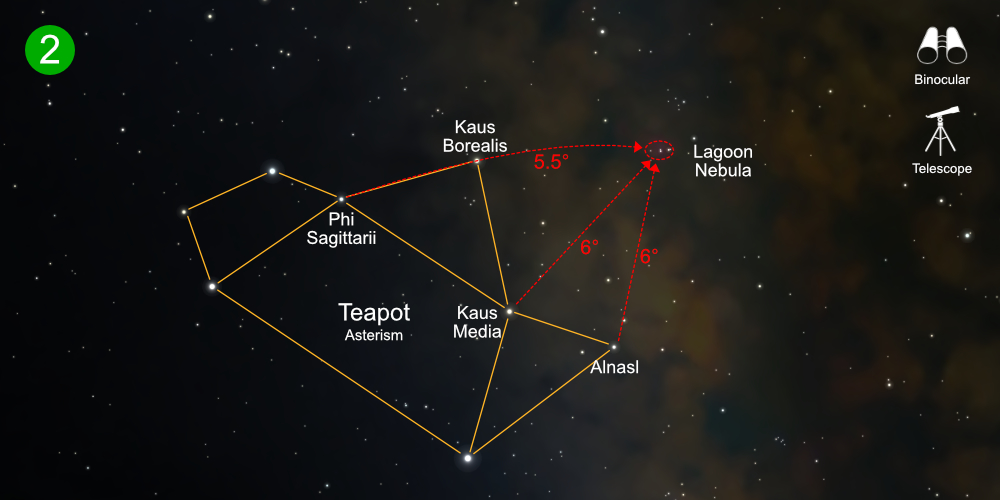

With binoculars or a telescope finder, point to the Lagoon Nebula/M8. To find it, you can hop from Phi Sagittarii to Kaus Borealis and then to M8, or you can form a triangle with it using Kaus Medina and Anasl. If your skies are dark enough, you can see M8 naked eye.

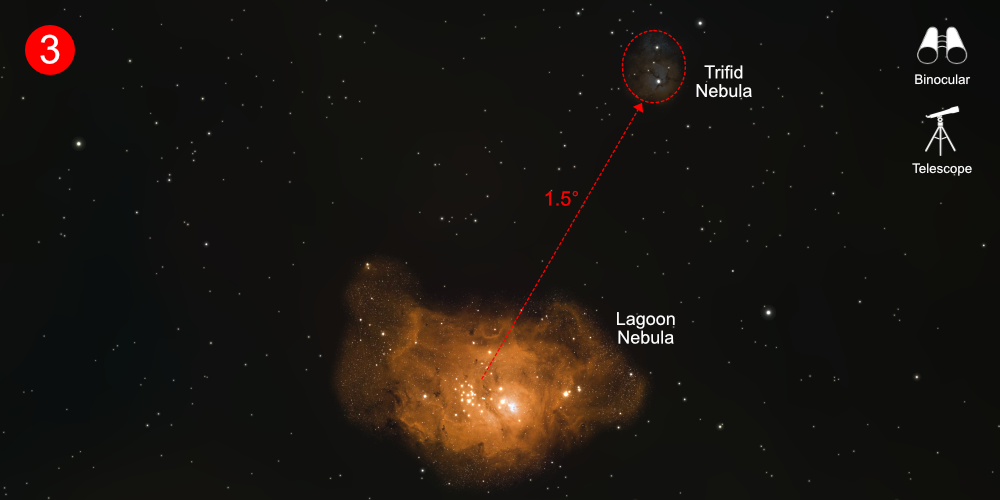

Using a binocular, telescope finder or low-powered eyepiece, hop 1.5° from the Lagoon Nebula/M8 to the Trifid Nebula/M20. You'll come across two relatively bright stars (+7) that are at the cores of the red and blue parts of M20. One of the stars may appear orange. They point in the general direction of M8. To confirm, look for nebulosity. A UHC filter may help.
Trifid Nebula/M20
Locate it just north of the Lagoon Nebula (Messier 8).
M20 is easy to find by star-hopping a short distance north of M8, which is itself a naked-eye object under dark skies. The two often fit in the same binocular or wide-field telescope view.
Use binoculars or a low-power telescope to spot it.
In binoculars or a small telescope, the Trifid appears as a small, round fuzzy patch with a faint star near the center, though the dark lanes are usually not visible without more aperture or magnification.
Start with low magnification to frame it.
Use 40x to 60x to view the entire nebula and its surroundings. The nearby open cluster Messier 21 is just to the northeast, and both can be framed together in a wide field.
Increase magnification to 100x or more for detail.
At higher power, the Trifid’s structure becomes clearer. The three dark lanes dividing the nebula into lobes may become visible, especially in larger scopes under dark skies.
Use a UHC or OIII filter to enhance contrast.
A narrowband filter will boost the brightness of the emission portion of the nebula, helping the dark dust lanes stand out more sharply. It may also dim the reflection component, so experiment with and without the filter.
Observe from a very dark sky site.
M20’s structure is subtle and easily washed out by light pollution or moonlight. Bortle 4 or better conditions are ideal for seeing its full shape and nearby nebulosity.
Let your eyes fully adapt to the dark.
Spend at least 20–30 minutes in darkness before observing, and shield your eyes from stray light to pick up the delicate contrasts in the nebula.
Try averted vision for the dark lanes.
Looking slightly off to the side helps bring out the dividing dust lanes, especially if they appear faint or incomplete at first glance.
Sweep the area—M20 sits in a rich sky region.
The Trifid Nebula is part of a dense Milky Way zone filled with clusters and nebulae. Take time to explore the surrounding area, including M8, M21, and dark nebulae in wide-field views.
Trifid Nebula/M20
Naked Eye
Messier 20, the Trifid Nebula, is invisible to the naked eye but lies in a densely populated region of the summer Milky Way in Sagittarius, where its presence blends into the background glow.
⚠️ Binoculars
Through binoculars under dark skies, it may appear as a faint, unresolved patch of light, often indistinct and difficult to separate from neighboring objects like Messier 21.
Small Telescope
In a small telescope, M20 begins to show its dual nature, with a subtle, round glow surrounded by stars, and careful observation may reveal a faint split or dark vein hinting at its famous three-lobed structure.
Medium Telescope
With a medium telescope, the nebula takes on more definition: the emission region becomes clearer and redder with filters, and the dark dust lanes that divide the nebula into three sections become visible, forming the iconic trifid appearance.
Large Telescope
In a large telescope, especially with a nebula filter, M20 transforms into a complex and captivating object, with the three dark rifts sharply cutting through the glowing gas, subtle texture visible within the lobes, and the nearby blue reflection nebula adding contrast and beauty to one of the sky’s most unique and photogenic star-forming regions.
Trifid Nebula/M20
Messier 20 is a complex and visually rewarding nebula that demands dark skies to be fully appreciated. In Bortle 1–2 conditions, its multiple components—emission, reflection, and dark nebulae—combine into a beautiful and structured object. In moderate light pollution, it retains some brightness but loses its defining features. In bright skies, it fades to a dim, shapeless glow. The Trifid is a perfect example of how sky quality not only affects visibility, but completely transforms the personality of a deep-sky object.
🟣 In Bortle 1–2 skies, M20 is a spectacular and intricate object. The emission nebula glows softly in pink or red hues (with color sometimes subtly visible), while the bluish reflection nebula surrounding it adds contrast and dimension. The dark dust lanes appear bold and well defined, splitting the nebula into three distinct lobes and giving it the iconic “trifid” appearance. Faint outer wisps extend beyond the bright core, and the entire region is embedded in a star-rich Milky Way backdrop, making the scene feel complex and alive. The Trifid appears as a richly textured cloud of light, dust, and color.
🔵 In Bortle 3–4 skies, the core of the Trifid remains visible and its general shape is still discernible. The dark lanes are fainter but still traceable, especially with patience and averted vision. The blue reflection nebula becomes much harder to detect, and the surrounding Milky Way loses some of its depth. The overall structure remains impressive, but the nebula loses some of its subtle gradation and contrast.
🟢 In Bortle 5–6 skies, M20 begins to fade into simplicity. The bright core is still there, but the three-lobed structure becomes vague or invisible. The dust lanes blur into the glow, and the reflection nebula is no longer seen. The nebula appears more like a soft, round patch of light, lacking detail or internal complexity. The surrounding stars are fewer, and the background glow reduces overall contrast.
🟡 In Bortle 7+ skies, the Trifid becomes extremely difficult to observe. Only the brightest portion of the emission nebula is faintly visible, and all structural detail is lost. The distinctive trifid shape disappears entirely, and the nebula appears as a weak, formless smudge in a pale sky. Without its defining dark lanes or the rich star field around it, M20 loses both its form and its character.
