M46, M47, NGC 2438 - a Stunning Open Cluster Duo in Puppis with a Surprise
Messier 46 and Messier 47 form a spectacular side-by-side pair of open star clusters in the constellation Puppis, making for one of the most rewarding double-cluster observations in the southern winter sky. Though close together in the sky—less than 1.5° apart—they are strikingly different in appearance and character, offering a fascinating contrast that stargazers can enjoy in a single telescope field at low power.
Messier 46 is the more subtle and distant of the two, located about 5,500 light-years away. It contains over 500 stars, forming a dense, misty swarm with a soft glow. At magnitude 6.1, it appears more compact and fainter than its neighbor, but careful observers will spot a true gem inside: the planetary nebula NGC 2438, which appears as a tiny, ghostly ring floating among the cluster’s stars—a rare and thrilling bonus for any deep-sky enthusiast.
Messier 47, in contrast, is much closer (about 1,600 light-years) and far more open and coarse in appearance. Shining at magnitude 4.4, it boasts a handful of bright, blue-white stars and is much easier to resolve with binoculars or a small telescope. The cluster’s stars are arranged in gentle curves and loose groupings, with several attractive doubles and colorful members that stand out beautifully against the background sky.
Together, M46 and M47 offer a rare chance to compare two very different star clusters side by side—one faint and rich, the other bright and sparse. Their proximity and variety make them an essential stop for any stargazer exploring the winter sky, especially with binoculars or a wide-field scope.
M46, M47, NGC 2438
Rating: 🔵 Stagazer Favorite
Level: 🟢 Moderate
How:
When: Dec - mid-Apr
🌟 A Striking Contrast in Cluster Style M46 and M47 lie side by side in the sky but display very different personalities. M46 is dense and misty, best appreciated with patience and dark skies, while M47 is bright, bold, and instantly rewarding. Seeing such a contrast in star density and brightness in one eyepiece field is both educational and visually stunning.
🌟 Rare Planetary Nebula Within a Cluster Messier 46 hides a treat: planetary nebula NGC 2438, which appears as a small, ghostly ring superimposed on the cluster. It’s a rare and fascinating sight to find a nebula seemingly embedded within a star cluster, and although it may not be physically related to the cluster, the visual effect is unforgettable—especially with medium or large telescopes.
🌟 Ideal for Wide-Field Observing The proximity of M46 and M47—just over a degree apart—means they can be observed together in the same field of view using binoculars or a telescope with a wide-field eyepiece. This makes them an excellent pair for side-by-side comparison and a great target for quick setup sessions.
🌟 Bright and Accessible for All Equipment Messier 47, at magnitude 4.4, is visible to the naked eye under dark skies and a showpiece in binoculars or small telescopes. M46, though fainter at magnitude 6.1, is still easily seen in small to medium scopes, especially from a dark site. Both clusters are accessible to beginners and offer more depth to explore for advanced observers.
🌟 Rich Star Fields and Subtle Colors M47’s bright stars often show subtle hints of blue and yellow, especially in larger telescopes, while M46 rewards patient viewing with a field full of fainter stars, forming delicate chains and curves. The variety in star brightness, color, and layout adds artistic beauty to the scientific value of both clusters.
🌟 Located in a Star-Dense Region Set against the backdrop of the winter Milky Way, M46 and M47 are part of a region filled with deep-sky riches, including nearby clusters like M93 and NGC 2423. Observing these two is a perfect gateway into a longer observing session focused on the underappreciated constellation Puppis.
M46, M47, NGC 2438
Names
Messier 46, NGC 2437, Messier 47, NGC 2422, NGC 2438
Open cluster: a loose group of a few dozen to a few thousand young stars that formed together and are loosely bound by gravity.
Planetary nebula: a glowing shell of gas ejected by a dying star, typically surrounding a hot white dwarf at its center.
M46, M47, NGC 2438

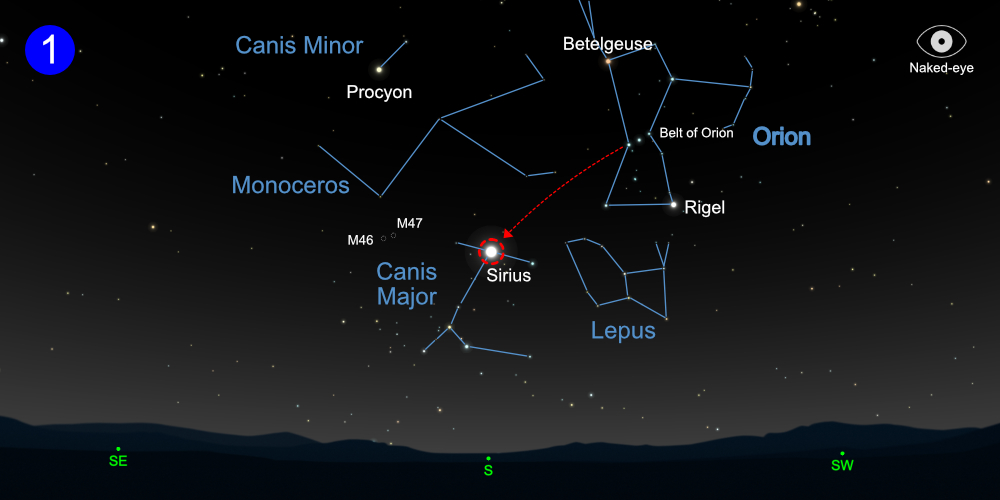

Find Sirius (-1.44) in the southern sky. It shines brilliantly—far brighter than any other star—and marks the heart of Canis Major. To confirm, note that the Belt of Orion points downwards to Sirius.
Find dim Muliphein (+4.11) about 4° east of Sirius. M47 is just another another 8° in the same direction and may be visible naked-eye. If you can't see it, use binoculars or a finder to hop from Sirius, to Muliphein and then to M47.
Once located, center each cluster to explore its unique character—M47 with its bright, widely spaced stars, and M46 with its dense glow. Look for the hidden planetary nebula in M46.
M46, M47, NGC 2438
✅ Use Low Power and a Wide Field Messier 46 and 47 are just over a degree apart, so a low-power eyepiece or wide-field binoculars will allow you to frame both clusters at once. This setup offers the best experience for comparing their brightness, density, and character.
✅ Observe from a Dark Sky Site While M47 is bright and easily seen from suburban areas, M46 is denser and fainter, benefiting greatly from dark skies. The faint stars and planetary nebula within M46 are much easier to detect with minimal light pollution.
✅ Look for the Planetary Nebula in M46 In M46, try to spot the small, round glow of NGC 2438, which looks like a tiny, detached ring or haze among the stars. It stands out more clearly in medium to large telescopes and may respond well to an O-III or UHC filter.
✅ Start with Binoculars for Orientation Binoculars give a great overview of the area and help you appreciate the clusters’ contrasting styles. Use them first to locate the pair and then zoom in with a telescope to explore details in each cluster.
✅ Revisit at Different Magnifications Start wide to see both clusters together, then switch to slightly higher power to study M46’s rich star field and M47’s bright members more closely. Changing magnification enhances your appreciation of their differences.
✅ Take Your Time with M46 M46 is subtle and dense, with many faint stars that reveal themselves gradually. Spend a few minutes letting your eyes adjust and using averted vision to bring out its delicate structure and hidden planetary nebula.
M46, M47, NGC 2438
⚠️ Naked Eye
With the naked eye under dark skies, Messier 47 may appear as a faint, hazy patch just above the horizon in winter or early spring, especially from southern latitudes. Messier 46, being fainter and more compact, is not visible to the unaided eye, even in ideal conditions.
✅ Binoculars
In binoculars, Messier 47 is an easy and attractive target, showing as a loose collection of bright stars with a wide, open structure. Messier 46 appears nearby as a soft, misty glow—less distinct but still detectable as a compact haze. The contrast between the two is immediately apparent, with M47 looking crisp and sparse, and M46 looking richer but more subdued.
✅ Small Telescope
Through a small telescope, Messier 47 becomes a sparkling group of bright, well-separated stars, some in gentle arcs or chains. Messier 46 now resolves partially into a grainy field with a subtle core, showing its denser, more distant nature. The planetary nebula NGC 2438 may start to appear as a faint, round haze within M46, especially under dark skies.
✅ Medium Telescope
With a medium telescope, the difference between the two clusters becomes even clearer. M47 is full of colorful, sharp stars—many blue-white or yellow—and stands out immediately. M46 becomes densely packed with dimmer stars, forming a soft, almost granular texture. The planetary nebula is easier to pick out as a small, round object with a slightly brighter center.
✅ Large Telescope
In a large telescope, M47 remains brilliant, showing crisp resolution of all its members with excellent color contrast. M46 becomes a fine, star-rich field with a tight core and a grainy, three-dimensional appearance. The planetary nebula NGC 2438 becomes obvious and may even hint at its ring shape, offering a rare and rewarding deep-sky detail within an open cluster. The pair, together, provide a memorable and educational side-by-side comparison of stellar clusters at different distances and stages.
M46, M47, NGC 2438
Messier 47 remains visible across a wide range of skies and is best under Bortle 1–4. Messier 46 needs darker skies to reveal its richness and hidden nebula. For the full experience of both clusters and their contrasting beauty, Bortle 1–3 skies are ideal.
🟣 In Bortle 1–2 skies, both clusters are striking. Messier 47 appears as a brilliant open grouping of stars with sharp definition and subtle color contrasts, while Messier 46 reveals a dense, misty core with fine structure and faint stars. The planetary nebula NGC 2438 is also detectable, adding a surprising highlight.
🔵 Under Bortle 3–4 skies, Messier 47 remains bold and beautiful, with most of its stars clearly visible. Messier 46 is still rich, though its fainter members begin to soften. The planetary nebula becomes more challenging but can still be seen with patience.
🟡 In Bortle 5–6 skies, Messier 47 holds up well, with its brightest stars standing out, though background richness is reduced. Messier 46 loses many of its fainter stars and appears more as a compact glow. The planetary nebula becomes difficult without filters and higher magnification.
🟠 Under Bortle 7+ skies, Messier 47 becomes sparse, with only a few bright stars punching through the skyglow. Messier 46 is barely detectable, often just a faint blur if seen at all. Fine details, especially the planetary nebula, are likely lost.
M46, M47, NGC 2438
DSOs within 48° or 2 outstretched hands at arm's length
